    Reciprocating Compressors

    Industrial-Duty Compressors

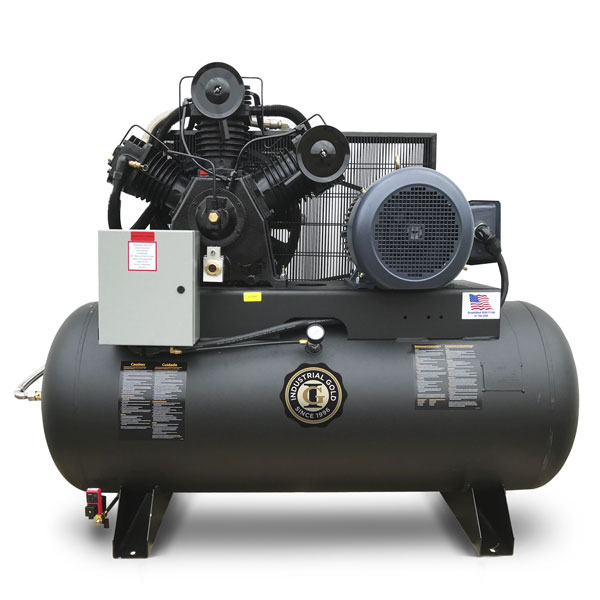

    15 HP 51 cfm Industrial-Duty Compressors

    Industrial duty icon portable icon

    The IG Industrial Series reciprocating compressors are designed for heavy commercial and industrial applications. Low rpm pumps provide reliable air for your applications and are manufactured for durability and long life. All of our units feature some of the most heavy duty components found in piston compressors today.

    IG Platinum Series compressors feature a unique option package that makes our compressors simpler to maintain while delivering higher quality air.

    15hp-ind-elec
    • Features
    • 51 cfm @ 175 psi
    • No Start-Up Kit Required
    • Optional 5-Year Pump Warranty
    • Access to compressor valves without compressor head removal
    • All UL electrical controls
    • ASME tested powder coated steel tank
    • Auto start stop
    • Bearings on both ends of the crank shaft
    • Centrifugal unloader
    • Disk and spring valves
    • Fully enclosed belt guard
    • Heavy-duty air filter
    • Heavy-duty two-stage solid cast iron pump
    • Industrial grade electric motor
    • Magnetic starter mounted and wired
    • Needle bearings, and inserts on rods
    • Stainless steel flex air lines
    • Swedish steel valves
    • TEFC drive motor (3 phase only)
    • Torrington needle bearings
    • 2-grove B width motor pulley
    • 2-piece tank top plate design
    • Platinum Model Features
    • All basic features
    • Automatic tank drain
    • Belt guard after cooler
    • Low oil monitor
    • Tank discharge ball valve
    • Vibration pads
    • Freight pre-paid in the 48 states & southern Canada
    Platinum Aftercooler
    Air-cooled aftercooler on all Platinum units
    Model Phase Voltage Tank Length Width Height Amp Draw 230 Volt Amp Draw 480 Volt
    CI1523E120H-CA3 1 208-230 120 Gallon Horizontal 70 26 54 42 21
    CI1523E240H-CA3 3 208-230-460 240 Gallon Horizontal 85 30 60 42 21
    Add -P after model number to make Platinum model
