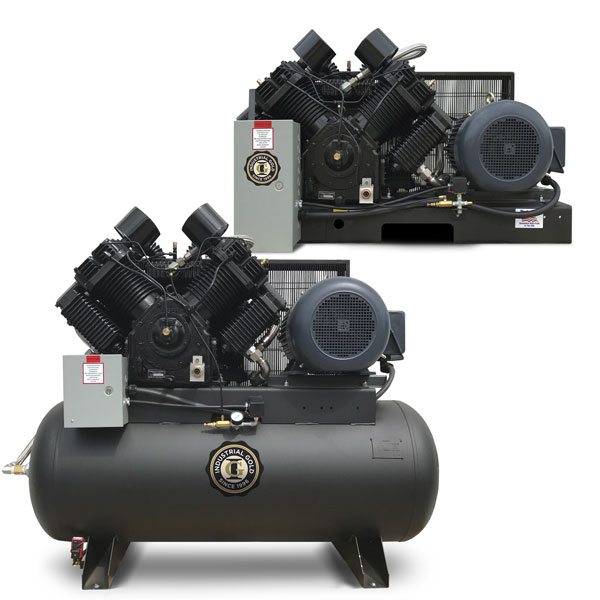

Industrial Duty Reciprocating Compressors
30 HP | 102 CFM
102 CFM @ 175 PSI
No Start Up Kit Required
Lifetime Parts Warranty Available
The IG Industrial Series reciprocating compressors are designed for heavy commercial and industrial applications. Low rpm pumps provide reliable air for your applications and are manufactured for durability and long life. All of our units feature some of the most heavy duty components found in piston compressors today. IG Platinum Series compressors feature a unique option package that makes our compressors simpler to maintain while delivering higher quality air.
- Heavy-duty two-stage solid cast iron pump
- Disk and spring valves
- Centrifugal unloader
- Access to compressor valves without compressor head removal
- All UL electrical controls
- ASME/CRN certified air receiver
- Auto start/stop
- Bearings on both ends of the crank shaft
- Fully enclosed belt guard
- Heavy-duty air filter
- Industrial grade electric motor
- Magnetic starter mounted and wired
- Needle bearings, and inserts on rods
- Stainless steel flexible air lines
- Swedish steel valves
- TEFC drive motor (3 phase only)
- Torrington needle bearings
- 2-groove B width motor pulley
- 2-piece tank top plate design
- All basic features
- Automatic tank drain
- Belt guard after cooler
- Low oil monitor
- Tank discharge ball valve
- Vibration pads
- Freight pre-paid in the 48 states & southern Canada
Models | Voltage | Tank | LxWxH | ||||||
CI3023E120H | 208-230-480/3 | 120 Gallon Horizontal | 70×38×60 | ||||||
CI3023E240H | 208-230-480/3 | 240 Gallon Horizontal | 96×42×76 | ||||||
Add -P after model number to make Platinum Model | |||||||||
