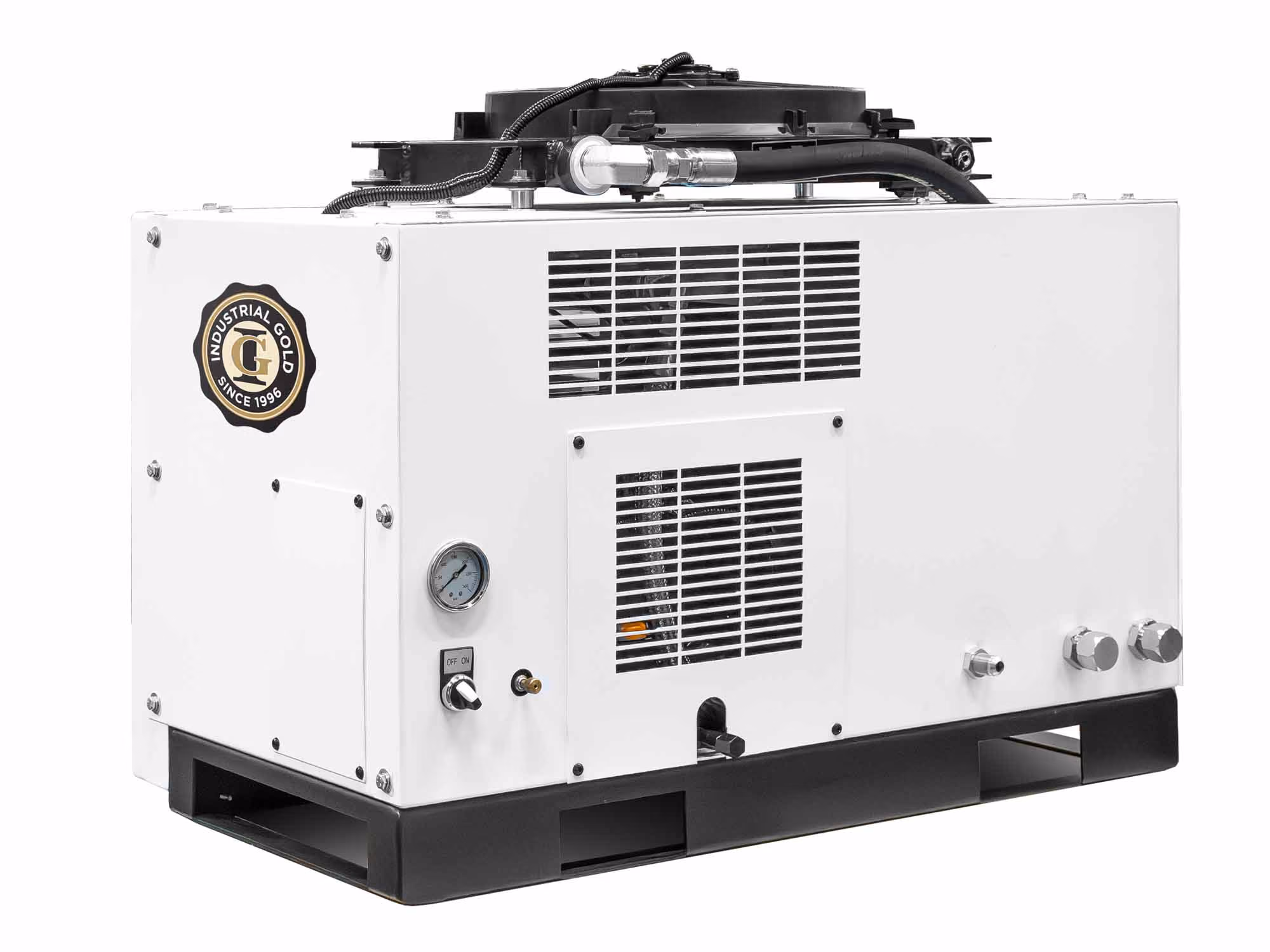

Hydraulic Reciprocating Compessors
40 CFM
40 CM @ 150 PSI
45 CM @ 100 PSI
No Start Up Kit Required
Lifetime Parts Warranty Available
Industrial Gold enclosed hydraulic-driven air compressors deliver extreme job-site power. Wrapped in a sound attenuating enclosure, IG enclosed compressors combine the lowest dBA levels in the industry with highest levels of reliability, efficiency and productivity available. A great fit for any mission-critical application, the 100% duty cycle assures the compressor can not be overworked. Quality components, simple controls, easy maintenance and once a year oil changes make this a great solution for high-volume and high productivity environments.
- All hydraulic fluid and air connections on same side
- ASME/CRN certified safety valves
- Bearings on both ends of crank shaft
- CAS SMART fluid control system
- Compressor load/unload operation
- Disk and spring valves
- Easy to remove compressor cover
- External NEMA 4 on/off switch
- Heavy-duty two-stage solid cast-iron pump
- Hydraulic fluid flow regulator
- Hydraulic fluid pressure regulator
- Hydraulic fluid bypass valve
- Intake filter silencer
- Needle bearings and inserts on rods
- NEMA 4 load/unload switch
- Steel mounting plate
- Vibration mounting pads
- 12 volt compressor air & oil cooler pack
- 12 volt control system
- Cold weather heating package
- Cover color change
- High ambient temperature cooling package
- Hose reels
- Hydraulic fluid cooler
- Tank mounted
- 24 volt operation
- 110 volt operation
Models | Hydraulic PSI required | GPM Hydraulic Flow Required | LxWxH | Weight | |||||
H-BM40 | 2250 | 12 | 40×30×25 | 450 | |||||
Control voltage connection to be supplied by vehicle/equipment compressor is mounted to. Do not let hydraulic fluid exceed 190° F. Dimensions are representatives of package dimensions not total space required for mounting. | |||||||||
