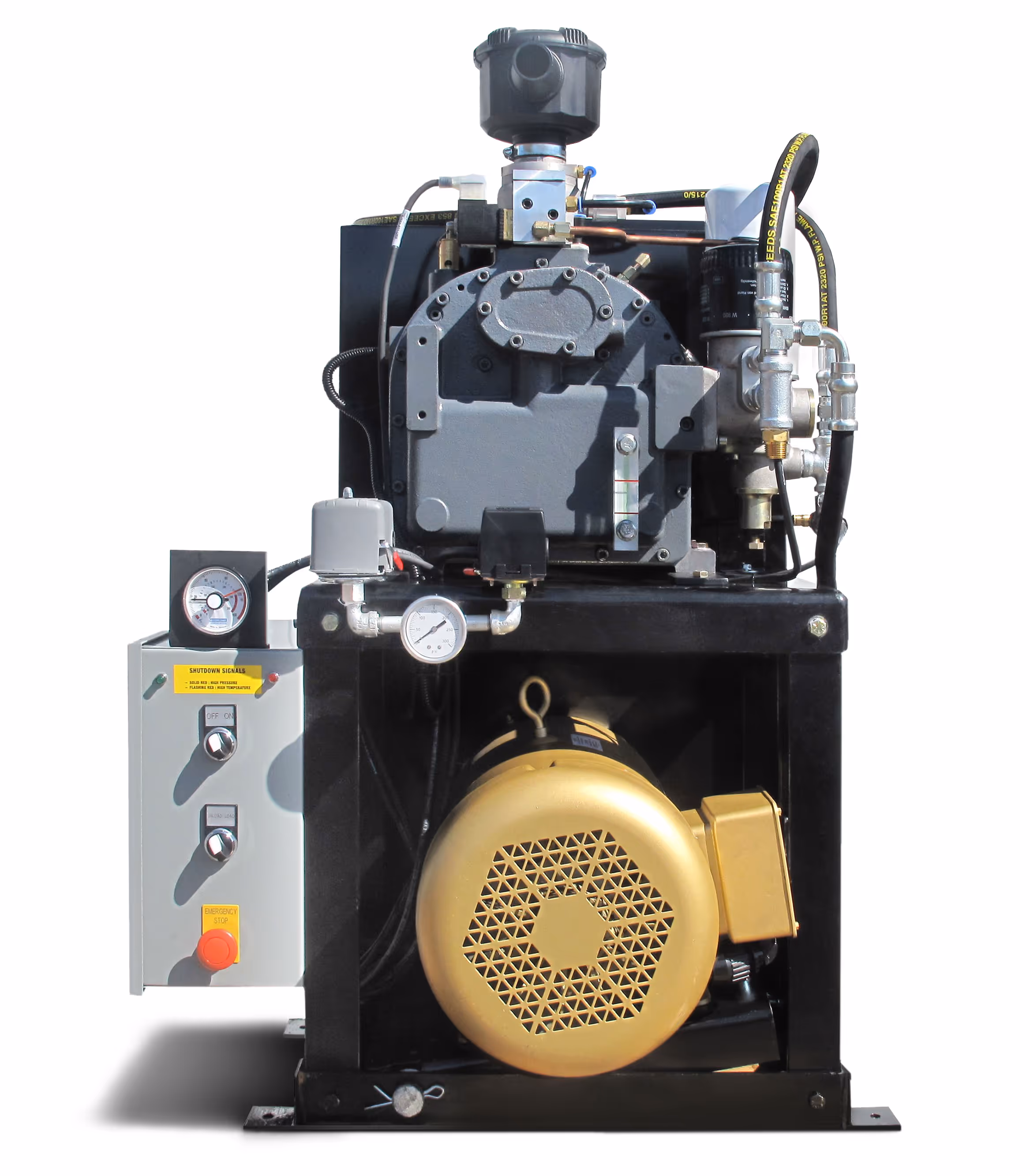

Cube Air System Rotary Screw Compressors
15 HP | 50 CFM
50 CFM @ 150 PSI
52 CFM @ 125 PSI
No Start Up Kit Required
Lifetime Parts Warranty Available
The Cube Air System is the simplest to purchase, own, and operate compressor in the world. The Cube Air System allows you to purchase a functioning compressor without having to purchase an air receiver. If the site already has a certified functional air receiver you simply install the Cube Air System next to the existing tank and connect the air discharge line. If the there is no existing tank or the existing tank is no longer certified or functional you can add a stand-alone tank to the system.
- Heavy-duty single stage rotary screw airend
- Industrial-duty electric drive motor
- Heavy duty air filter
- Minimal floor space foot print
- Spin on separator
- Spin on oil filter
- Air/oil cooler
- Analog easy to use controls
- High air temperature sensor
- High oil temperature sensor
- High pressure sensor
- Less than 3ppm oil carry over
- Low tip speed on airend for long life
- Self tensioning drive belt system
- Single solenoid operation
- Vibration isolation pads
- 10 minute timed shut down for electrical savings
- 8000 hour full synthetic fluid
- 220 PSI maximum working pressure
- ASME/CRN certified air receiver
- Receiver gauge
- Manual tank drain
- Receiver safety valve
- Refrigerated air dryer
- Vibration mounting pads
- Class 1 Div 2 drive motor
- Coalescing filtration
- Desiccant air dryer
- Electronic automatic tank drain kit (shipped loose for installation on site)
Kit includes: drain, ¼ pipe street, 90 elbow, ¼ pipe 6” nipple - Enrollment in factory extended service program
- Enrollment in factory extended warranty plan
- Multiplex control panel
- NEMA 4X electrical components
- NEMA 7 electrical components
- Particulate filtration
- Quick Install Kit
Includes: 8 feet electrical cord with plug, 6 feet compressor to tank air line JIC fittings, 6 feet tank to facility air line JIC fittings - Enclosure for noise reduction
- Refrigerated air dryer
- 30, 60, 80, 120 gallon storage tank
(200 PSI MWP, ASME, CRN)
Models | Voltage | LxWxH | Weight | ||||||
R153Q-RS | 208-230/480/3 | 28×30×40 | 450 | ||||||
To make package “CDR” configuration add –CDR to the end of the model number | |||||||||
