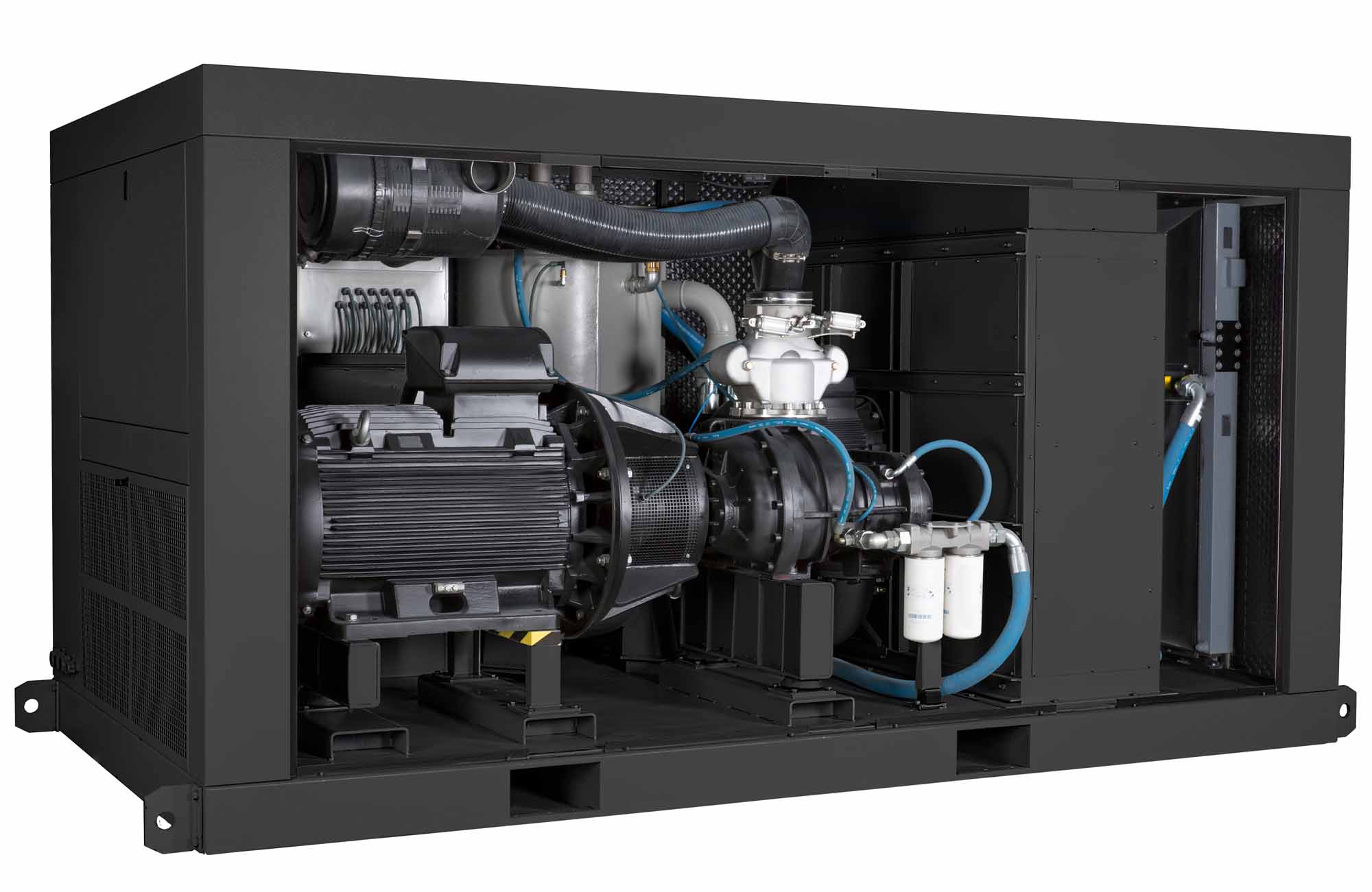

Enclosed Two-Stage Rotary Screw Compressors

150 HP | 653 CFM

653 CFM @ 190 PSI

766 CFM @ 125 PSI

No Start Up Kit Required

Lifetime Parts Warranty Available

Description

Powered by IE4 Super Premium Efficiency motors with IP55 protection, F-class insulation, and UL-certified controls. The direct-drive design reduces wear and power loss. Controls support Industry 4.0 features such as remote monitoring, load balancing, sequenced operation, real-time pressure and temperature data, and RFID security.

No items found.
Features

  • Two-stage direct drive airend
  • 100-218 PSI operational pressure
  • Inverter-controlled drive motor
  • Inverter-assisted soft start for safety and reduced inrush current
  • IE4 Super Premium Efficiency standard electric motor
  • IP55 protection with F-class insulation rating
  • UL certified electrical controls
  • Up to 35% operational cost savings by eliminating idle energy consumption
  • Thermostatic mixing valve for oil temperature control
  • Quiet inverter-controlled radial fan air/oil cooler
  • Proportional control valve regulates air output based on air consumption for energy savings
  • Hydraulic hoses and steel piping
  • Easy to access air/oil filters with blockage detection and indicators
  • Air and oil temperature sensors
  • Air pressure sensors
  • Noise insulating cabinet with easy access doors on all sides
  • Quiet cooling air discharge through an exit vent
  • Integrated RFID access control
  • Industry 4.0 compatible with remote monitoring, load balancing, and sequenced operation
  • Control system equipped with LCD screen
  • Displays operating status, pressure and temperature values, maintenance schedules, and more

Models

KW

R150HK-ENC

110
